Hot Plate Station

hot plates

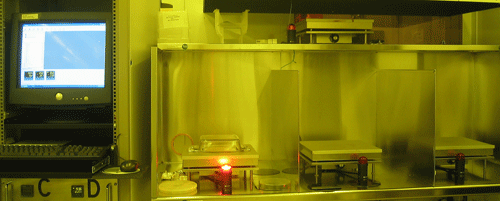

The hot plate station is comprised of four Prazitherm precision hot plates manufactured for resist processing.  Each hot plate is sized 350mm x 350mm.  They are flat and level, with temperature uniformity of +/- 0.5º.  The maximum operating temperature is limited to 200ºC in order to maintain temperature inside the cleanroom.  A hood located over the hot plate station ensures evaporated fumes are not released into the cleanroom environment.

Each hot plate is controlled through its own PID controller with a PC using iTools© software by Eurotherm.  The programmable software allows for controlled and automated heating and cooling cycles, though there is no active cooling associated with the hot plates.  Each controller has 4 recipes, with 16 segments available for programming each recipe.
