Instrumentation
| Photo | Item | Instrument | Resolution |
|---|---|---|---|
 |
Sample Stages |
Newport UTM100pp.1 Newport VM4pp Newport VM25.4pp Newport RV80CC |
0.1 µm 20 arc sec 0.1 µm 0.001 degree |
|
|

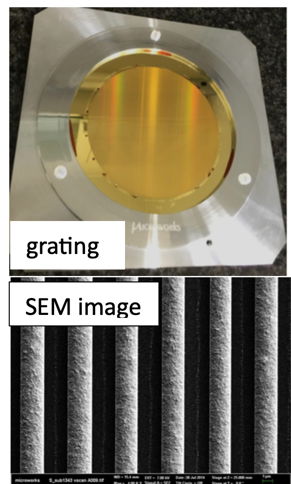

Grating |
absorption gratings phase grating, π/2 phase shift at 40keV |
4.8 µm pitch 2.4 µm pitch |
| Grating Motion |
SmarAct SR7012-S Newport RV120HAT-F Newport M-436 with LTA Physik Instrumente P541.2CD |
0.5 µdegree 0.75 mdeg 0.1 µm 0.3 nm |
|
| Detector |
PI PIXIS 2KB PCO.edge5.5, 4.2LT |
2Kx0.5K 2K x 2K |
|
| Motion Controller |
newport MM3000,XPS-Q8, MCS-3CC-ETHA, E-625.CR |
||
| Operation | LabView | ||
| Data Processing |
MatLab, Mathematica MatLab, Mathematica |
||
| Visualization, Analysis | Image J, Avizo, DragonFly |
